Stainless Steel Wafer type Check Valve
Item specifics
- size
- 1/2''~36''
- Material
- stainless steel, carbon steel, forged steel
- Pressure
- 150LB~1500LB/PN16~PN260
- Seat
- NBR/EPDM/VITON,etc.
Product review
Description
Wafer type Single/Double disc check valve(API/DIN standard)

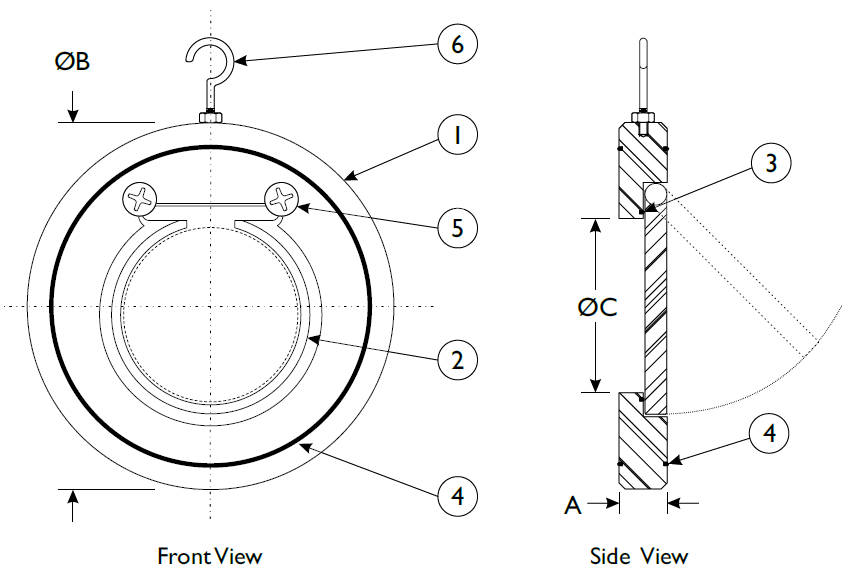

Single disc check valve

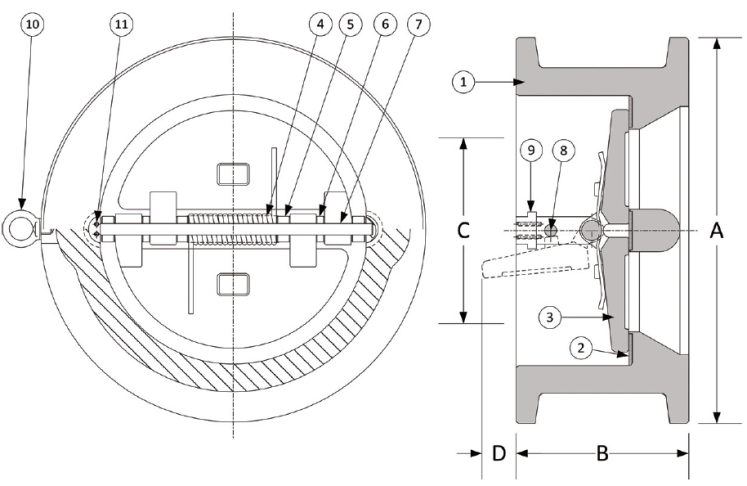

Double disc check valve

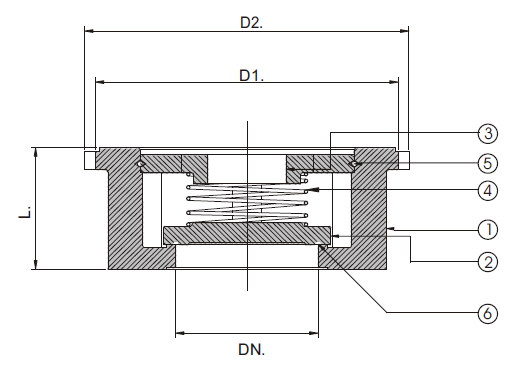

Spring type check valve
Applicable Standards:
1.Design & Manufacture standard: API594/EN14341.
2.Pressure & Temperature standard: ASME B16.34/DIN2401.
3.Face to face dimension standard: ASME B16.10/EN558.
4.Flange standard: ASME B 16.5, ASME B16.47/EN1092.
5.Test & Inspect standard: API 598/EN12266.
Product Feature:
1.Unobstructed flow
2.Stable disc at lower flow velocities
3.Non slam design
4.No shearing of disc from arm
5.Non-rotating disc for longer life
6.No nut to back-off disc stem
Specification:
|
Brand |
RST
|
||
|
1.Material
|
SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, WCC,LCB,LCC,WC6,WC9, C5,C12, etc.
|
||
|
2.Size
|
1/2’’~24’’
|
||
|
3.Certificates
|
ISO9001 & CE, TS
|
||
4.Port | Full Port | ||
5.Working Pressure | 150LB~1500LB/PN16~PN64 | ||
6.Connection Ends | Wafer ends | ||
7.Working Temp | -20~425℃, or according to customer requirements for different industry. | ||
8.Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid | ||
9.Valve Test | 100% quality tested before delivery | ||
Shipment | |||
Delivery Time | 15~30 Days | ||
Package | Standard Exporting Plywood Case | ||
Shipping Port | Ningbo/Shanghai, China | ||
Shipping Terms | Exw, FOB, CFR, CIF, etc. | ||
Payment Terms | T/T, B/L, D/A, D/P, etc. | ||
30% prepayment, 70% balance paid before shipping or against copy of BL | |||
Valve Guarantee | 18 month after shipments | ||
Valve Sample | Sample available by RST VALVE | ||
MOQ | 1 SET |
Applications:
1.Chemical Industry
2.Petro-chemical Industry
3.Plant Construction
4.Power Plant Engineer
5.Paper & Pump Industry
6.Mining
7.Gas Utilities
8.Environment Technologies
9.Steam Generation
10.Drink water
11.Sewage water industry
Function:
Check valve allows flow in one direction and automatically prevents back flow (reverse flow) when fluid in the line reverses direction. They are one of the few self-automated valves that do not require assistance to open and close. While some can be fitted with externally weighted and dampened devices for special circumstances, the majority do not have any outside assistance, such as that found with on/off or other valves. Unlike other valves, they continue to work even if the plant facility loses air, electricity, or the human being that might manually cycle them.
Wafer Double Disc Check Valves are used in both vertical and horizontal applications. For horizontal flow applications the shaft should be vertically oriented. Contact RST for downward vertical flow installations.
