3PC Full Port Flanged ends Floating Stainless Steel Ball Valve
Item specifics
- Size
- 1/2''~6''
- Material
- WCB/CF8/CF8M/304/316
- Pressure
- PN16/PN40
- Ends
- RF
- Seat
- PTFE/RPTFE/PPL
Product review
Description

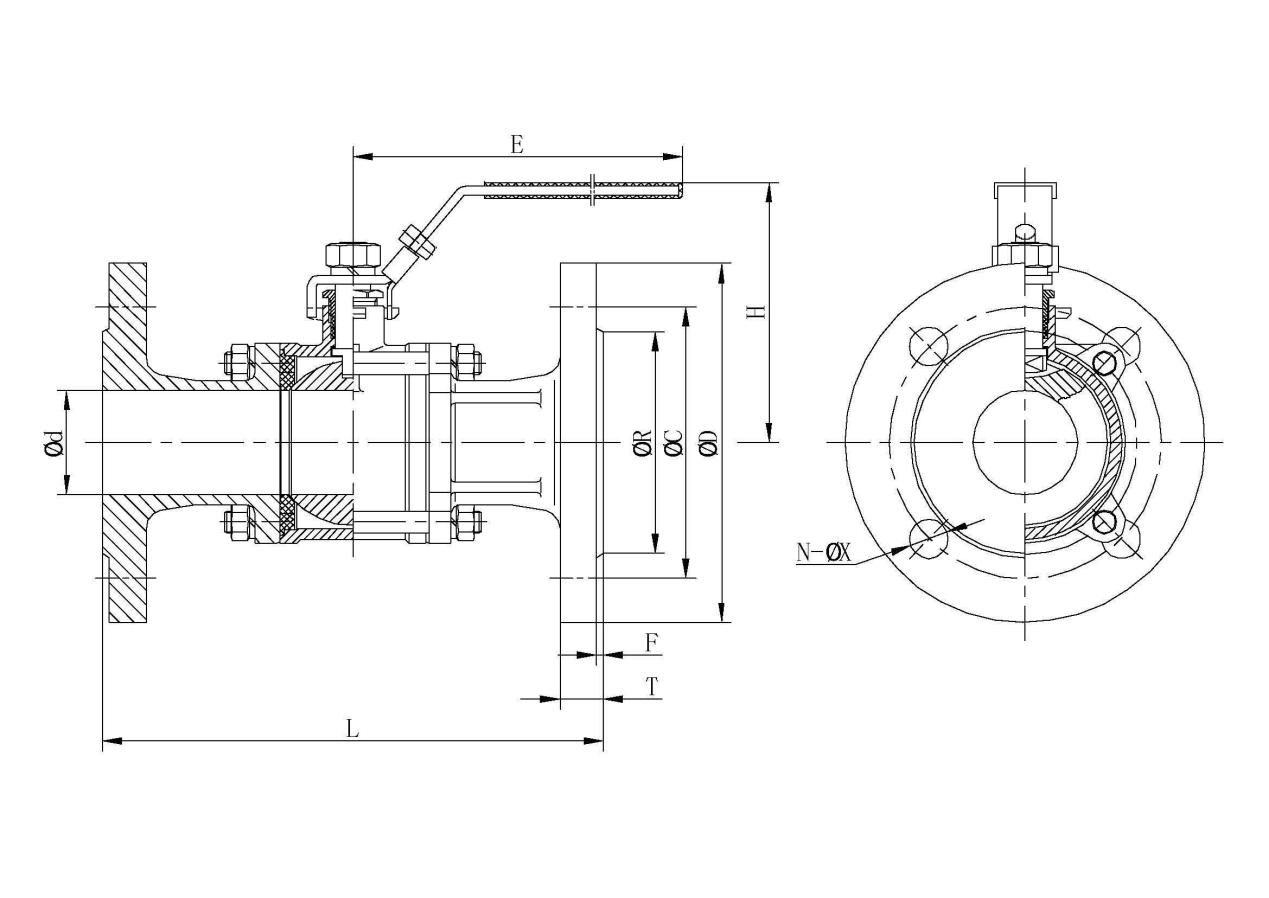

3PC Full Port Flanged ends Floating Stainless Steel Ball Valve
Applicable Standards:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.
Product Feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer’s request or according to valve’s medium & temp. condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
Specification:
|
Brand |
RST
|
||
|
1.Material
|
SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.
|
||
|
2.Size
|
1/2~6''( DN15~DN150)
|
||
|
3.Certificates
|
ISO9001 & CE, TS
|
||
4.Port | Full Port | ||
5.Working Pressure | 150LB/PN16 | ||
6.Connection Ends | RF | ||
7.Working Temp | -20~180℃, or according to customer requirements for different industry. | ||
8.Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid | ||
9. Operated | Handle operated, Locking device is option | ||
Valve Test | 100% quality tested before delivery | ||
Shipment | |||
Delivery Time | 15~30 Days | ||
Package | Standard Exporting Plywood Case | ||
Shipping Port | Ningbo/Shanghai, China | ||
Shipping Terms | Exw, FOB, CFR, CIF, etc. | ||
Payment Terms | T/T, B/L, D/A, D/P, etc. | ||
30% prepayment, 70% balance paid before shipping or against copy of BL | |||
Valve Guarantee | 18 month after shipments | ||
Valve Sample | Sample available by RST VALVE | ||
MOQ | 1 SET |
Accessories:
A locking device to secure valve position is standard. RST carries a range of valve control accessories to suit your needs including manual gear operators for large valves, declutchable gear operators for actuated valves, spring return handles for dependable automatic opening and closing, limit switches for on-off indication and other products such as positioners, indicators,overrides and regulators.
Applications:
1. Chemical Industry
2.Petro-chemical Industry
3.Plant Construction
4. Power Plant Engineer
5. Paper & Pump Industry
6. Mining
7. Gas Utilities
8. Environment Technologies
9. Steam Generation
10. Drink water
11. Sewage water industry
