Three Way Flange T/L Port Ball Valve
| Group | FLOATING BALL VALVE |
|---|---|
| Min. Order | 1 piece |
| Terms of Payment | all |
| Update Time | 2020-09-28 |
Item specifics
| Size | 1/2''~10'' |
|---|---|
| Material | WCB/304/316/2205 |
| Port | T port/L port |
| Seat | PTFE/RPTFE/PPL |
| Pressure | 150LB~300LB/PN16~PN40 |
- Description
- Product review
Three Way Flange T/L Port Ball Valve
Standard: API/ASME, DIN, JIS standards for option.
Applicable Standards:
1. Design & Manufacture standard: API 6D, API 608.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.
Product Feature:
1. Floating ball, reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.

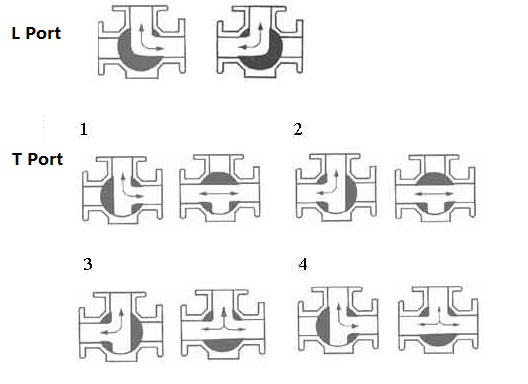

4. L Port & T Port for choice.
5. PTFE/RPTFE seat seal( Seat seal material could be decided by customer’s request or according to valve’s medium & temp. condition).
6. Fire-proof and anti-static design if need.
7. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
Specification:
|
Brand
|
RST
|
||
|
1.Material
|
SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.
|
||
|
2.Size
|
1/2~8 inch ( DN15~DN200)
|
||
|
3.Certificates
|
ISO9001 & CE, TS
|
||
4.Port | Reduce Port | ||
5.Working Pressure | 150LB, 5K/10K/20K, PN16/PN40 | ||
6.Connection Ends | RF, RTJ, FF, etc. | ||
7.Working Temp | -20~180℃, or according to customer requirements for different industry. | ||
8.Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid | ||
9.Operated | Handle operated, Locking device is option | ||
10.Valve Test | 100% quality tested before delivery | ||
Shipment | |||
Delivery Time | 15~30 Days | ||
Package | Standard Exporting Plywood Case | ||
Shipping Port | Ningbo/Shanghai, China | ||
Shipping Terms | Exw, FOB, CFR, CIF, etc. | ||
Payment Terms | T/T, B/L, D/A, D/P, etc. | ||
30% prepayment, 70% balance paid before shipping or against copy of BL | |||
Valve Guarantee | 18 month after shipments | ||
Valve Sample | Sample available by RST VALVE | ||
MOQ | 1 SET |
Accessories:
A locking device to secure valve position is standard. RST carries a range of valve control accessories to suit your needs including manual gear operators for large valves, declutchable gear operators for actuated valves, spring return handles for dependable automatic opening and closing, limit switches for on-off indication and other products such as positioners, indicators,overrides and regulators.
Competitive Advantage:
1. 18 Months Guarantee for quality.
2. OEM manufacturer, print client’s LOGO on the valve body.
3. Offer Operation Manual & Install Introduction for safety use.
4. Offer manufacturer’s reasonable price to win the market for both.
5. Accept any the third party inspection.
6. As a factory, every production process can be controlled during manufacture.
7. Offer inspection & testing reports for raw materials, production process, wall thickness, face to face dimension, pressure test, welding test, painting test, etc.
Applications:
1.Chemical Industry
2. Petro-chemical Industry
3. Plant Construction
4. Power Plant Engineer
5. Paper & Pump Industry
6. Mining
7. Gas Utilities
8. Environment Technologies
9.Steam Generation
10.Drink water
11.Sewage water industry
