Forged Steel Flange Check Valve
| Group | FORGED STEEL VALVE |
|---|---|
| Min. Order | 1 piece |
| Terms of Payment | all |
| Update Time | 2020-08-12 |
Item specifics
| Size | 1/2''~2'' |
|---|---|
| Pressure | 150LB~2500LB |
| Material | A105/F304/F316/F11/F22/F51/F91,etc. |
| Ends | RF/RTJ/FF/FM |
- Description
- Product review
Forged Steel Flange Check Valve
Features:
1. 150LB~2500LB option
2. Stainless steel disc
3. Screwed cap
4. Bolted bonnet or welded bonnet or pressure seal bonnet
5. Non return disc
6. Spiral-wound gasket
7. Swing type, lift type available
Design construction:
1. ASME B16.34 - BS 5352
2. Testing according to API 598
3. Socket Weld Ends to ASME B16.11
4. Screwed Ends (NPT) to ASME B1.20.1
5. Butt Welding Ends to ASME B16.25
6. Flange ends to ASME B16.5
Specification:
|
Brand
|
RST
|
||
|
1.Material
|
F304/316/304L/316L ( CF8/CF8M/CF3/CF3M), A105,F11,F22,F51,LF2 etc.
|
||
|
2.Size
|
1/2’’~4’’
|
||
|
3.Certificates
|
ISO9001 & CE, TS
|
||
4.Port | Reduce Port | ||
5.Working Pressure | 150LB~2500LB/PN16~PN160 | ||
6.Connection Ends | RF, RTJ, etc. | ||
7.Working Temp | -20~425℃, or according to customer requirements for different industry. | ||
8.Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid | ||
9. Operated | Handwheel Operated, Gear, Actuators | ||
10.Valve Test | 100% quality tested before delivery | ||
Shipment | |||
Delivery Time | 15~30 Days | ||
Package | Standard Exporting Plywood Case | ||
Shipping Port | Ningbo/Shanghai, China | ||
Shipping Terms | Exw, FOB, CFR, CIF, etc. | ||
Payment Terms | T/T, B/L, D/A, D/P, etc. | ||
30% prepayment, 70% balance paid before shipping or against copy of BL | |||
Valve Guarantee | 18 month after shipments | ||
Valve Sample | Sample available by RST VALVE | ||
MOQ | 1 SET |

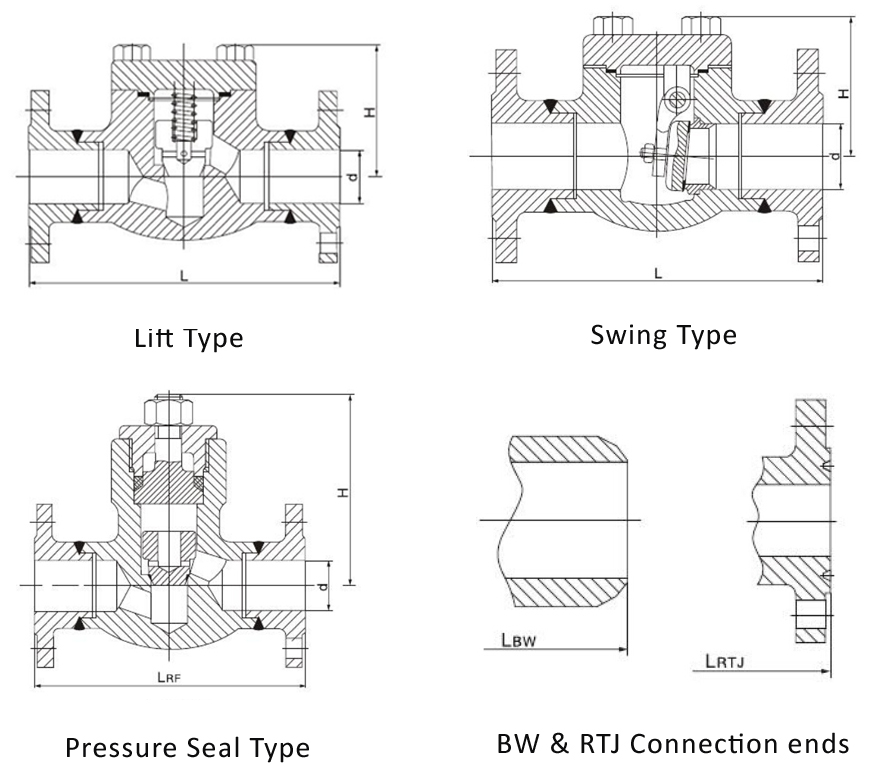

Check Valve types:
Applications:
1. Chemical Industry
2. Petro-chemical Industry
3. Plant Construction
4. Power Plant Engineer
5.Paper & Pump Industry
6. Mining
7.Gas Utilities
8. Environment Technologies
93. Steam Generation
10.Drink water
11.Sewage water industry
