Forged Steel Bolted Bonnet Gate Valve

Min. Order 1 piece
Terms of Payment all
Update Time 2020-08-12
Item specifics
Material105/F304/F316/F11/F22/F51/F91, etc.
  • Description
  • Product review

Forged Steel Bolted Bonnet Globe Valve

Design construction:

1. API 602 - ASME B16.34 - BS 5352

2. Testing according to API 598

3. Marking MSS SP25

4. Outside Screw and Yoke (OS&Y)

5. Self aligning two piece packing gland

6. Spiral-wound gasket

7. Integral backseat

8. Socket Weld Ends to ASME B16.11

9. Screwed Ends (NPT) to ASME B1.20.1

10. Butt Welding Ends to ASME B16.25

11. Ratings:

     carbon steel class 800 1975 psig @ 100°F (138 bar + 38°C)

     carbon steel class 1500 3705 psig @ 100°F (255 bar + 38°C)

F304/316/304L/316L ( CF8/CF8M/CF3/CF3M), A105,F11,F22,F51,LF2  etc.
ISO9001 & CE, TS
Reduce Port
5.Working Pressure
6.Connection Ends
7.Working Temp
-20~425℃, or according to customer requirements for different industry.
8.Suitable Medium
Water, Natural Gas, Oil and some corrosive liquid
9. Operated
Handwheel Operated, Gear, Actuators
10.Valve Test
100% quality tested before delivery
Delivery Time
15~30 Days
Standard Exporting Plywood Case
Shipping Port
Ningbo/Shanghai, China
Shipping Terms
Exw, FOB, CFR, CIF, etc.
Payment Terms
T/T, B/L, D/A, D/P, etc.
30% prepayment, 70% balance paid before shipping or against copy of BL
Valve Guarantee
18 month after shipments
Valve Sample
Sample available by RST VALVE

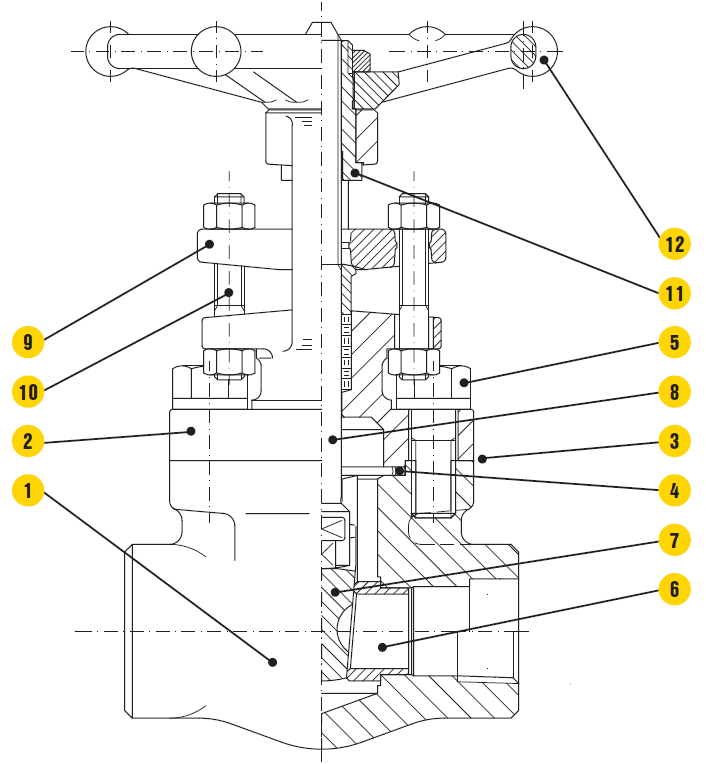

1. BODY. The body is forged steel and designed to the basic dimensional requirements of the applicable specifications such as API 602 and ASME B16.34. The body is available in both the full or conventional port design.

2. BONNET. The bonnet is forged steel, has an integral backseat and incorporates the stuffing box, which has dimensions per the applicable specifications such as API 602.

3. BODY-BONNET JOINT. Two different bonnet joint designs are available. These are either the bolted bonnet or the threaded and seal welded type.

4. GASKET. The bolted bonnet joint design valve uses a contained, controlled compression, spiral wound type gasket.

5. BONNET BOLTING. The bonnet bolting is manufactured of alloy steel in accordance with the requirements of the applicable specifications such as API 602 and ASME B16.34.

6. SEAT RINGS. The seat rings are steel and makeup part of the valve trim. They are pressed into the valve body and wedged into place, forming a seal with the body. The seating surfaces are ground and lapped.

7. WEDGE. The wedge, which is solid design, is forged or investment cast steel and is part of the valve trim. The seating surfaces are ground and lapped.

8. STEM. The stem is forged steel and part of the valve trim. It contains an integral back seat shoulder, which mates with the integral backseat of the bonnet. The stem is designed to the basic dimensional requirements of the applicable specifications such as API 602.

9. GLAND AND FLANGE. The gland, gland flange assembly utilizes a separate, two piece design. This self aligning design allows the flange to be unevenly tightened while the gland maintains it’s parallel alignment with the stem and stuffing box.

10. GLAND BOLTS AND NUTS. The steel/stainless steel gland bolt and nut assembly is a stud, double nut arrangement. This design allows complete removal from the valve when service is required. The use of industry standard thread full length studs and nuts also allows easy replacement should these items be lost or in need of replacement.

11. YOKE SLEEVE. The yoke sleeve is of forged stainless steel material having a high melting point and is resistant to wear and corrosion.

12. HANDWHEEL. The handwheel is forged carbon steel of an open spoke design. This robust construction along with appropriate sizing allows for ease of operation.



1. Chemical Industry

2. Petro-chemical Industry

3. Plant Construction

4. Power Plant Engineer

5. Paper & Pump Industry

6. Mining

7.Gas Utilities

8.Environment Technologies

9. Steam Generation

10.Drink water

11. Sewage water industry
